Kubernetes, an open-source container orchestration platform, simplifies the deployment, scaling, and management of containerized applications. A key aspect of Kubernetes that enables seamless communication between components is its networking model. Networking in Kubernetes is designed to provide connectivity between containers, pods, and external systems while abstracting complex networking configurations. This article dives into how networking works in Kubernetes, covering its core concepts, architecture, and practical examples.

Core Networking Concepts in Kubernetes

Pods and Pod-to-Pod Communication

Pods are the smallest deployable units in Kubernetes, typically housing one or more containers. Each pod gets a unique IP address within the cluster.

Kubernetes ensures that all pods can communicate with each other directly using their IP addresses, regardless of the node they’re on. This is achieved through flat networking.

Kubernetes’ networking model mandates that:

• All pods can communicate with all other pods without NAT (Network Address Translation).

• Pods see the same IP address externally and internally.

Services

Services provide stable, abstracted endpoints to pods, enabling reliable communication even if pod IPs change. Key service types include:

• ClusterIP: Exposes the service internally within the cluster.

• NodePort: Makes the service accessible externally via a static port on each node.

• LoadBalancer: Integrates with cloud provider load balancers for external access.

• ExternalName: Maps a service to an external DNS name.

DNS in Kubernetes

Kubernetes automatically creates DNS records for services. Applications within the cluster can use service names to communicate, simplifying configuration.

Ingress

Ingress is an API object that manages external access to services, typically HTTP/S traffic. It enables routing based on URL paths or hostnames and often integrates with TLS for secure communication.

1. CNI (Container Network Interface)
   Kubernetes relies on a CNI plugin to implement its networking model. Popular CNI plugins include:

• Calico: Offers advanced network policies and BGP routing.

• Weave Net: Focuses on simplicity and works without a dedicated overlay network.

• Flannel: Implements a flat network using an overlay like VXLAN.

2. Kube-Proxy

• Runs on each node and handles service networking.

• Uses iptables or IPVS to route traffic to the correct pod.

3. Kube-DNS/CoreDNS

• Provides DNS-based service discovery within the cluster.

• Automatically resolves service names to cluster IPs.

How Traffic Flows in Kubernetes

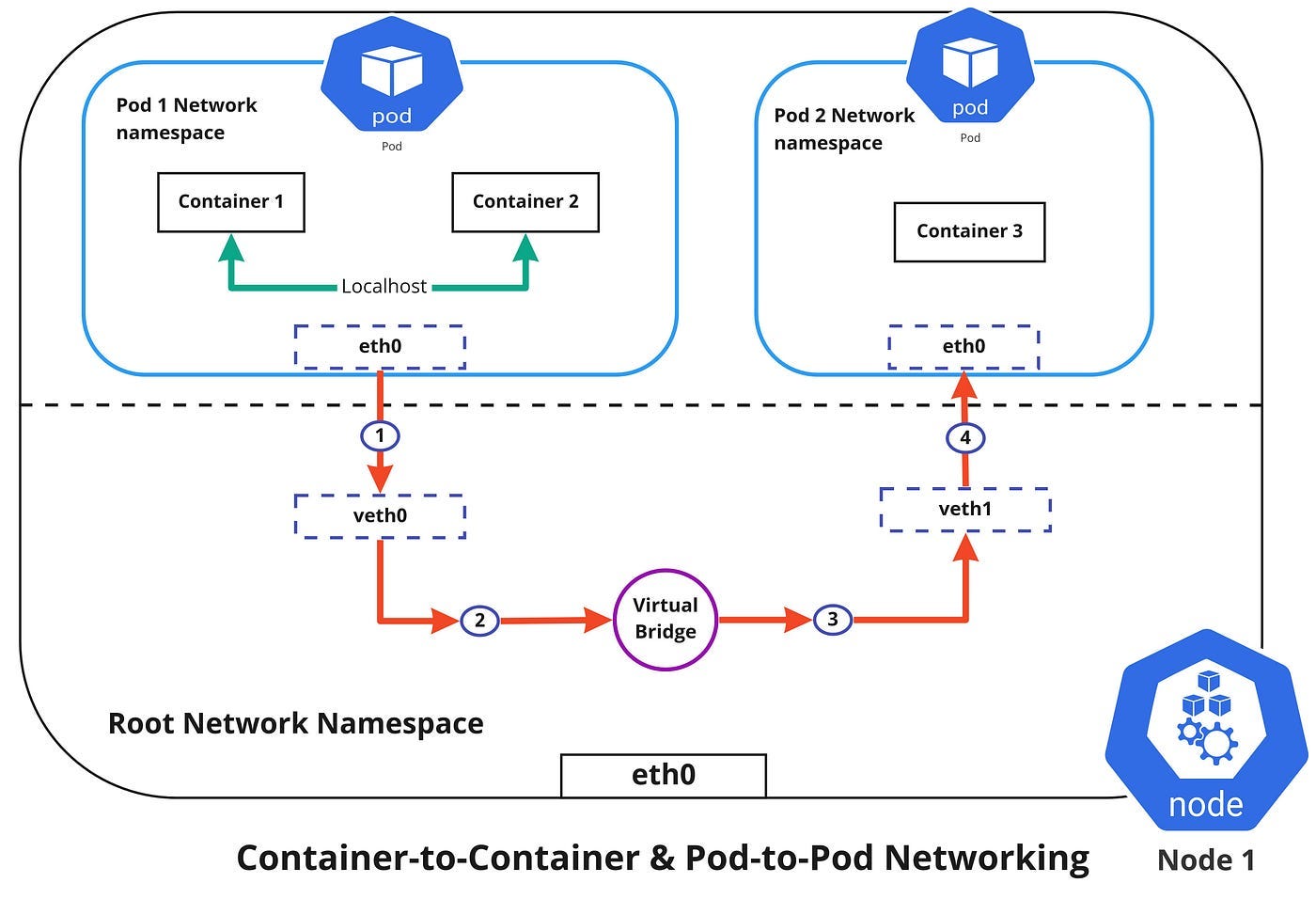

1. Pod-to-Pod Communication

Pods use their assigned IPs to communicate. Consider a cluster with two pods:

• Pod A: 10.1.1.1

• Pod B: 10.1.1.2

A pod’s network namespace isolates its networking environment, but the CNI plugin ensures connectivity across namespaces and nodes.

2. Pod-to-Service Communication

Services abstract pods using a virtual IP (ClusterIP). Traffic directed to a service IP is forwarded to one of the pods backing the service. The kube-proxy manages this forwarding, ensuring load balancing.

3. External-to-Internal Traffic

Ingress or NodePort services enable external traffic to reach pods:

• Ingress controllers (e.g., NGINX or Traefik) handle HTTP/S routing.

• NodePort exposes the service on a node’s IP and a specific port, allowing access via NodeIP:NodePort.

Kubernetes Network Policies

Network policies regulate pod communication based on rules. Policies are defined using YAML files and leverage labels to specify:

• Source and destination pods

• Protocols (TCP, UDP)

• Ports

Example:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-web
  namespace: default
spec:
  podSelector:
    matchLabels:
      app: web
  ingress:
  - from:
    - podSelector:
        matchLabels:
          app: backend
    ports:
    - protocol: TCP
      port: 80

This policy allows pods labeled backend to access the web pod on TCP port 80.

Common Challenges and Solutions

1. Network Performance Bottlenecks

• Use efficient CNI plugins like Calico with BGP or IPVS for high throughput.

• Optimize pod placement to reduce cross-node traffic.

2. DNS Resolution Issues

• Debug with tools like kubectl exec and dig.

• Ensure CoreDNS is running and properly configured.

3. Complex Ingress Rules

• Use a declarative approach for ingress configurations.

• Leverage annotations for advanced setups (e.g., rate-limiting).

Conclusion

Kubernetes’ networking model is designed for simplicity and scalability, but understanding its inner workings is crucial for building robust applications. By leveraging services, ingress, and network policies, you can create secure and efficient communication channels within your Kubernetes cluster. Whether you’re deploying a small app or managing a large-scale environment, Kubernetes networking provides the flexibility to meet diverse needs.
